In an era where data is the new gold, securing it is of paramount importance. Network Attached Storage (NAS) devices have emerged as a popular choice for data storage, offering a blend of security, accessibility, and scalability. Among the myriad of options available, the Synology DiskStation DS1522+ stands out with its robust security features and versatile data management capabilities.
The Synology DiskStation DS1522+: A Versatile Data Hub
The Synology DiskStation DS1522+ is a 5-bay NAS device that offers a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance. It’s designed to scale and expand as your needs change, with optional support for up to 15 drives, 10GbE networking, and NVMe SSD caching. This makes it an ideal choice for both home and small business use.
Security Features: Protecting Your Data
One of the key strengths of the Synology DiskStation DS1522+ is its robust security features. The device offers industry-standard AES-256 encryption, ensuring that your stored footage and data are protected from unauthorized access.
The Synology DiskStation DS1522+ also comes with built-in snapshot technology, which allows you to take point-in-time snapshots of shared folders and LUNs at intervals of down to 5 minutes. This feature protects against data loss, accidental deletion, or malware attacks. You can set a custom retention schedule and roll back files and VMs to a version that is unaffected.
The Rising Tide of Data Breaches
In 2022, the number of data compromises in the United States stood at 1,802 cases, affecting over 422 million individuals. These compromises include data breaches, leakage, and exposure, all of which result in sensitive data being accessed by unauthorized threat actors.
Certain industry sectors are more susceptible to data breaches due to the type and volume of personal information they store. In 2022, healthcare, financial services, and manufacturing were the three industry sectors that recorded the most data breaches. The number of healthcare data breaches in the United States has gradually increased within the past few years. In the financial sector, data compromises almost doubled between 2020 and 2022, while manufacturing saw an increase of more than three times in data compromise incidents.
The largest data exposure recorded to date occurred in 2020, when an adult streaming website, CAM4, experienced a leakage of nearly 11 billion records. This case is unique because cybersecurity researchers found the vulnerability before the cybercriminals did. The second-largest data breach is the Yahoo data breach, dating back to 2013. The company first reported about one billion exposed records, then later, in 2017, came up with an updated number of leaked records, which was three billion. In March 2018, the third biggest data breach happened, involving India’s national identification database Aadhaar. As a result of this incident, over 1.1 billion records were exposed.
These statistics underscore the importance of robust data security measures. The Synology DiskStation DS1522+ is designed to provide such measures, offering industry-standard AES-256 encryption and built-in snapshot technology to protect against data loss, accidental deletion, or malware attacks.
For more detailed statistics on data breaches, you can visit Statista.
Smart Surveillance: Transforming Your NAS into a Video Management System
The Synology DiskStation DS1522+ can be transformed into a full-featured video management system for a wide range of compatible IP cameras. It supports up to 40 IP cameras from a selection of over 8,300 validated models. The device also offers intelligent monitoring features such as motion detection, no idle zone, foreign object detection, and anomaly detection to cater to the most common surveillance scenarios.
Data Management: More Than Just Storage
Beyond its security features, the Synology DiskStation DS1522+ offers a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system. This includes features for data sharing, synchronization, backup, and surveillance.
The device also supports Synology’s private cloud solution, allowing you to store, sync, and access data from any device, wherever you are. You can sync data between different platforms and devices, and access your files through mobile apps, desktop clients, and a browser-based interface.
Here’s a table summarizing the key data management features of the Synology DS1522+:
| Feature | Specification |
|---|---|
| CPU | AMD Ryzen R1600, 2-core 2.6 (base) / 3.1 (turbo) GHz |
| System Memory | 8 GB DDR4 ECC SODIMM (expandable up to 32 GB) |
| Drive Bays | 5 (expandable up to 15 with DX517 x 2) |
| M.2 Drive Slots | 2 (NVMe) |
| Compatible Drive Types | 3.5″ SATA HDD, 2.5″ SATA SSD, M.2 2280 NVMe SSD |
| External Ports | 4 x RJ-45 1GbE LAN Port, 2 x USB 3.2 Gen 1 Port, 2 x eSATA Port |
| PCIe Expansion | 1 x Gen3 x2 network upgrade slot |
| File System (Internal Drives) | Btrfs, EXT4 |
| File System (External Drives) | Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Warranty | 3-year hardware warranty, extendable to 5 years |
For more detailed information about the Synology DiskStation DS1522+, you can visit the official product page.
How to install and setup DS1522+
- Unbox the DS1522+: Carefully unbox your Synology DS1522+ and ensure you have all the necessary components. This includes the NAS itself, power cable, ethernet cable, drive bay keys, and screws for 2.5″ drives if you’re using them.
- Install the drives: The DS1522+ has five drive bays. To install a drive, remove the corresponding drive tray, place the drive in the tray, and secure it using the provided screws. Then, slide the tray back into the NAS.
- Connect the NAS to your network: Connect the DS1522+ to your router or switch using the provided ethernet cable. Plug the power cable into the NAS and then into a power outlet.
- Power on the NAS: Press the power button on the front of the DS1522+ to turn it on.
- Install and set up DSM (DiskStation Manager): Open a web browser on a computer connected to the same network as the NAS. In the address bar, type
find.synology.comordiskstation:5000to access the DSM installation wizard. Follow the on-screen instructions to install DSM and set up your NAS. - Configure your storage: Once DSM is installed, you can log in and set up your storage. Go to Storage Manager and create a new volume or Storage Pool.
- Install apps: You can now install apps to add functionality to your NAS. This can be done through the Package Center in DSM.
The Intuitive Interface of Synology DS1522+
The Synology DiskStation Manager (DSM) is the operating system running on Synology NAS devices, including the DS1522+. It offers an intuitive user interface that makes managing your Synology NAS a breeze.
The DSM interface is designed to be easy to use, even for those without technical expertise. It features a desktop-like environment that allows you to open multiple applications in separate windows and perform tasks concurrently. You can customize the desktop background and shortcuts to suit your preferences.
The main menu, located at the top-left corner, provides quick access to all installed packages and system settings. You can also use the search bar to find specific settings or files.

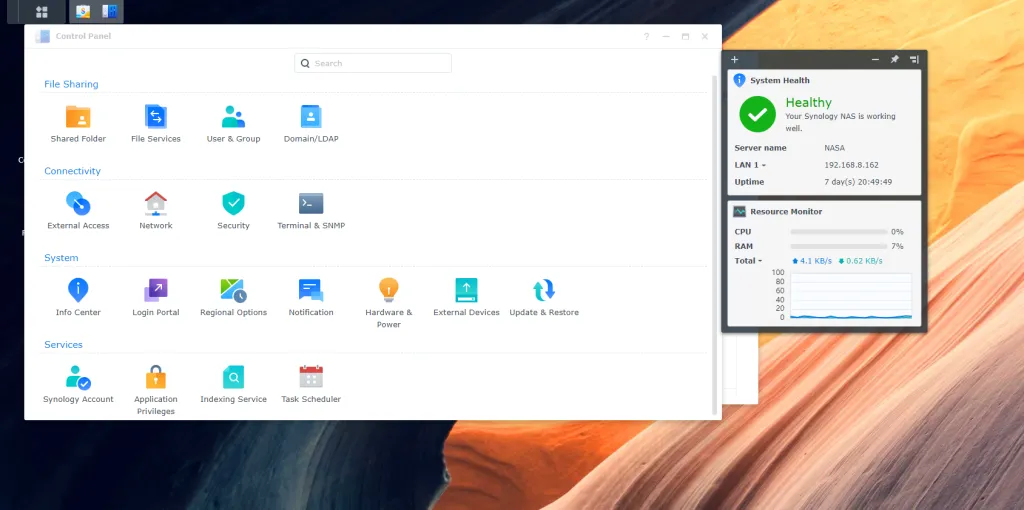

The control panel is where you can configure system settings, network services, user accounts, and more. It’s organized into different sections, making it easy to find the settings you need.

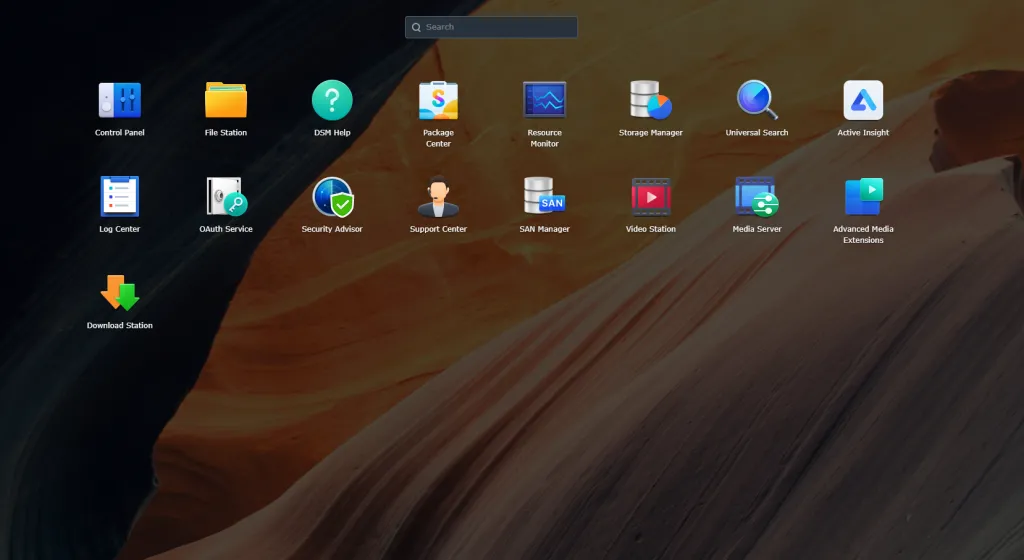

The DSM also includes a package center, which is like an app store for your NAS. You can browse and install a wide range of applications to enhance the functionality of your NAS. This includes apps for data backup, media streaming, file synchronization, and more.
The DSM also provides a comprehensive set of tools for monitoring system status and resource usage. The resource monitor displays real-time information about CPU, memory, and network usage. The storage manager provides an overview of your storage space and allows you to manage your disks and volumes.
In addition to its user-friendly interface, the DSM also supports advanced features for power users. This includes support for SSH and Telnet for remote management, task scheduler for automating tasks, and log center for detailed system logs.
Overall, the DSM interface is designed to make it easy to manage and get the most out of your Synology NAS. Whether you’re a home user or IT professional, you’ll find the DSM interface intuitive and powerful.
Please note that the exact features and appearance of the DSM interface may vary depending on the DSM version and your specific Synology NAS model. For more information, you can refer to the official Synology DSM guide.

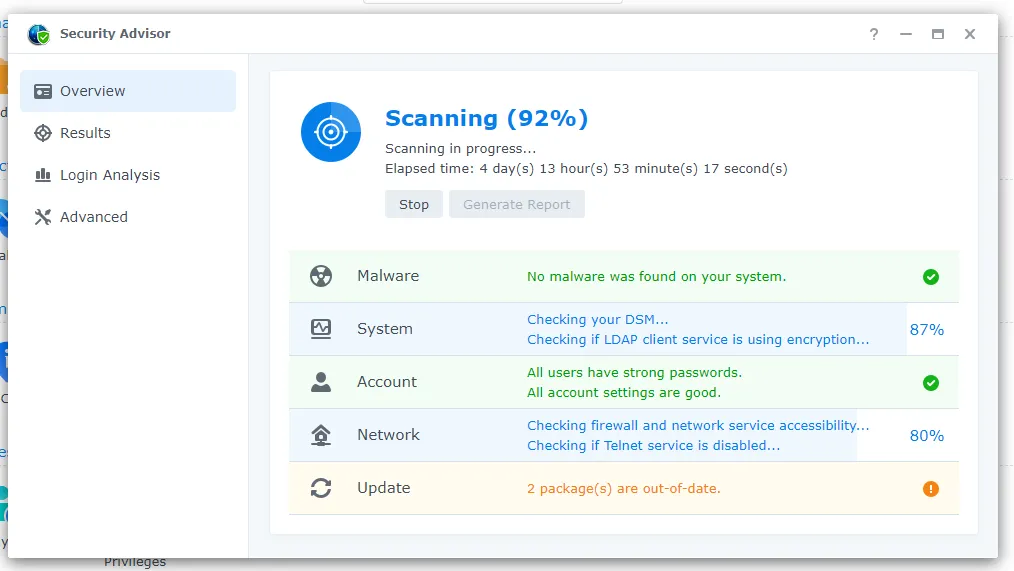

Security Advisor: Your Personal Security Consultant
Security Advisor is an essential feature in the Synology DS1522+ that acts as your personal security consultant. It analyzes system settings, password strength, network preferences, and removes any potential vulnerabilities to ensure your DS1522+ is always secure.
The tool conducts a thorough scan of your system and provides a detailed security report, highlighting any areas of concern. It categorizes issues into different levels – High, Medium, and Low – based on their potential impact on your data security. This allows you to prioritize and address the most critical issues first.
Security Advisor also checks for the latest DSM updates and patches, ensuring your system is always up-to-date against the latest threats. It also monitors your DSM for any suspicious activities, such as repeated login attempts, and alerts you in real time.
In addition, Security Advisor is customizable. You can schedule regular security scans at your convenience and choose the types of checks to be performed during the scan. This way, you can maintain a high level of security without affecting your NAS’s performance.
With Security Advisor, you can rest assured that your Synology DS1522+ is well-protected and your data is secure. For more information, you can refer to the official Synology Security Advisor guide.
Conclusion
The Synology DiskStation DS1522+ is more than just a NAS device. It’s a versatile data hub that offers robust security features, making it an ideal choice for anyone looking to secure their data. Whether you’re a home user or a small business, the Synology DiskStation DS1522+ offers a flexible and secure solution for your data storage needs.
Frequently Asked Questions (FAQs)
1. What type of drives can I use with the Synology DS1522+?
The Synology DS1522+ supports both 2.5″ and 3.5″ SATA drives. This includes HDDs and SSDs. It’s recommended to use drives from Synology’s list of compatible drives.
2. Can I expand the storage capacity of the DS1522+?
Yes, the DS1522+ can be expanded up to 15 drives with two Synology DX517 expansion units.
3. What is the maximum storage capacity of the DS1522+?
The maximum raw capacity with 18TB drives is 270TB (18TB x 15), but the actual maximum capacity will depend on the RAID type.
4. Can I use the DS1522+ as a media server?
Yes, with the appropriate apps installed, the DS1522+ can serve as a media server. Apps like Video Station, Audio Station, and Plex can be installed from the Package Center.
5. How do I access my files remotely?
You can access your files remotely using Synology’s QuickConnect service or by setting up a VPN. QuickConnect allows you to connect to your NAS over the internet with a customizable address.
6. How do I back up my data to the DS1522+?
There are several ways to back up data to the DS1522+. You can use Synology’s Hyper Backup app to back up data from other Synology NAS or other servers. You can also use third-party apps like Time Machine for macOS or File History for Windows.
7. What kind of security features does the DS1522+ offer?
The DS1522+ offers numerous security features, including AES-256 encryption, two-step verification, firewall, IP auto-block, and more. It also supports the Btrfs file system, which offers snapshot technology for data protection.
8. Can I run virtual machines on the DS1522+?
Yes, with the Virtual Machine Manager app, you can run various operating systems in a virtualized environment on the DS1522+.
9. What kind of warranty does the DS1522+ come with?
The DS1522+ comes with a 3-year warranty, which can be extended to 5 years with the purchase of the EW202 bundle.
10. Can I use the DS1522+ for surveillance?
Yes, the DS1522+ can be used as a surveillance station with the Surveillance Station app. It can support up to 40 IP cameras.
Thank you for reading!
